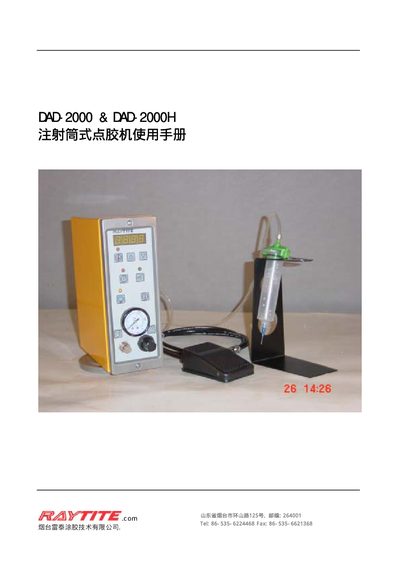

DAD-2000 & DAD-2000H injection molding glue machine user manual, introduces the product's parameters, instructions, installation and operation, troubleshooting and other information.
This manual describes the Raytite DAD-2000 and DAD-2000H syringe‑type dispensing machines. It lists model identifiers, technical specifications, and safety information needed for installation and use.
Key sections cover power supply details, mechanical dimensions, weight capacity, valve configuration, and control panel functions, helping users set up and operate the equipment correctly.
| Power Input | AC 220 V, 50 Hz, 1.0 A |
|---|---|
| Dimensions | 232 mm × 186 mm × 81 mm |
| Valve Type | 3‑Port Valve, DC 24 V |
| Dispensing Time Range | 0.01 ~ 99.99 sec |
The machine requires AC 220 V, 50 Hz, with a current draw of 1.0 A.
The unit measures 232 mm in width, 186 mm in depth, and 81 mm in height.
It uses a 3‑port valve powered by a 24 V DC supply.
