The SN74LVC2G241 is a dual buffer/line driver from Texas Instruments (TI). It is designed for 1.65V to 5.5V VCC operation and is specifically designed to improve the performance and density of 3-state memory-address drivers, clock drivers, and bus-oriented receivers and transmitters.
The SN74LVC2G241 dual buffer/driver provides two 1‑bit line drivers with separate output‑enable inputs, supporting 1.65 V to 5.5 V supply operation and 3‑state output control. It features low power consumption (10 µA max), high‑speed performance (typical propagation delay 4.1 ns at 3.3 V), and robust ESD protection.

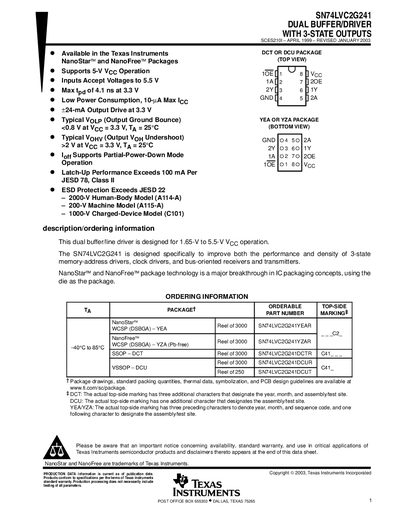

The datasheet includes absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, mechanical drawings for DCT and DCU packages, and ordering information for various package types. An important notice at the end outlines TI's warranty and liability terms.
| Output drive current (typical) | 24 mA at 3.3 V |
|---|---|
| Propagation delay (typical) | 4.1 ns at 3.3 V |
It can source or sink up to 24 mA at a 3.3 V supply.
The part is offered in DCT, DCU, SSOP, and NanoStar/NanoFree packages.
The typical propagation delay is 4.1 ns at 3.3 V.
