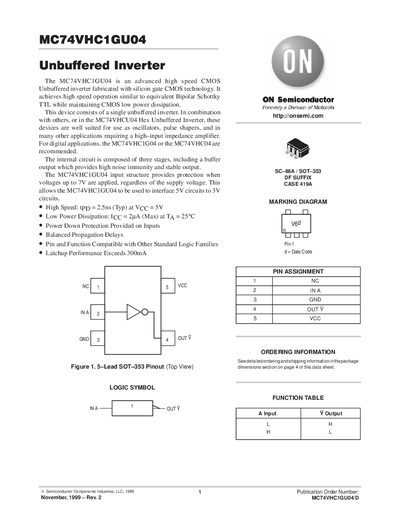

The MC74VHC1GU04 is an advanced high speed CMOS Unbuffered inverter fabricated with silicon gate CMOS technology.
The MC74VHC1GU04 is an unbuffered high‑speed CMOS inverter designed for use in oscillators, pulse shapers, and other digital applications. It offers high input impedance, low power dissipation, and protection for input voltages up to 7 V.
The datasheet lists absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, package dimensions, and tape/reel specifications. Ordering information and contact details for ON Semiconductor support are also included.
| Propagation delay (tpp) typ | 2.5 ns at Vcc = 5 V |
|---|---|
| Low‑power dissipation (Icc) max | 2 µA at Ta = 25 °C |
| Supply voltage range (absolute max) | -0.5 V to +7.0 V |
| Recommended supply voltage | 2.0 V to 5.5 V |
The recommended DC supply voltage is 2.0 V to 5.5 V.
Typical propagation delay (tpp) is 2.5 ns at a 5 V supply.
It is supplied in a 5‑lead SOT‑353 (SC‑88A) package.
