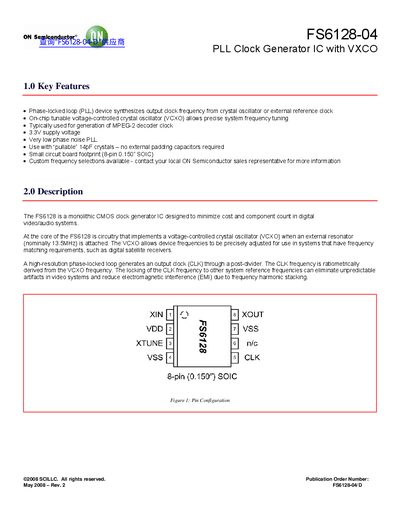

FS6128-04 is a low power and low phase noise PLL clock generator IC from ON Semiconductor. It is manufactured in CMOS technology and integrates a VCO. It uses an external crystal oscillator and works at a supply voltage of 3.3V. It is typically used for generation of MPEG-2 decoder clock.
The FS6128-04 PLL Clock Generator IC integrates a voltage‑controlled crystal oscillator (VCXO) and a phase‑locked loop to produce precise output clocks from a crystal or external reference. It operates from a 3.3 V supply, offers very low phase noise, and requires no external load capacitors when using pullable 14 pF crystals.
The device is supplied in an 8‑pin 0.150 in SOIC package, with detailed pin functions and electrical specifications provided. Ordering options include green (lead‑free) and standard packaging, and custom frequency selections are available through ON Semiconductor sales representatives.
| Supply voltage | 3.3 V ±10 % |
|---|---|
| VCXO tuning range | 300 ppm (peak‑to‑peak) |
| Storage temperature range | -65 °C to 150 °C |
The device operates from a 3.3 V supply with a tolerance of ±10 %.
The VCXO can be tuned over a range of 300 ppm (peak‑to‑peak).
The device can be stored from –65 °C up to 150 °C.
