The ECM range of single and multiple output AC-DC, 40-60 W power supplies from XP feature the world's smallest footprint for units of these ratings.

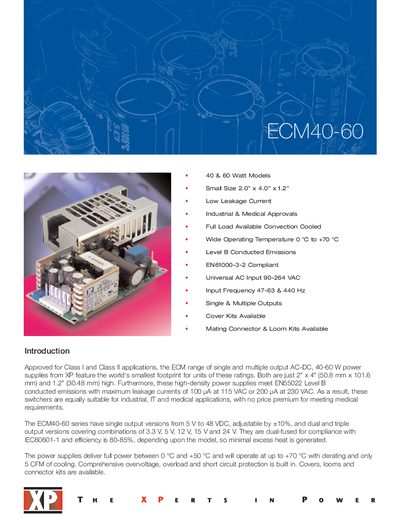

The ECM40‑60 family offers 40 W and 60 W AC‑DC converters in a very small 2.0" × 4.0" × 1.2" footprint. They accept a universal 90‑264 VAC input, operate from –0 °C to +70 °C, and meet EN55022 Class B emissions and IEC60601‑1 medical safety requirements. Both single‑output (5‑48 VDC) and multi‑output versions (combinations of 3.3 V, 5 V, 12 V, 15 V, 24 V) are available, with optional cover, loom and connector kits.
Key specifications include 80‑85 % efficiency, 70 kHz fixed switching frequency, 150 g weight, 1500 VAG isolation, and MTBF of 250 khrs. The units are convection‑cooled (≈5 CFM) and feature comprehensive over‑voltage, overload, short‑circuit and hiccup‑mode protection.
