Featured ECM40-60 manuals
XP Power ECM40-60 Power Supply Product Leaflet
The ECM40‑60 family offers 40 W and 60 W AC‑DC converters in a very small 2.0" × 4.0" × 1.2" footprint. They accept a universal 90‑264 VAC input, operate from –0 °C to +70 °C, and meet EN55022 Class B emissions and IEC60601‑1 medical safety requirements. Both single‑output (5‑48 VDC) and multi‑output versions (combinations of 3.3 V, 5 V, 12 V, 15 V, 24 V) are available, with optional cover, loom and connector kits.
Key specifications include 80‑85 % efficiency, 70 kHz fixed switching frequency, 150 g weight, 1500 VAG isolation, and MTBF of 250 khrs. The units are convection‑cooled (≈5 CFM) and feature comprehensive over‑voltage, overload, short‑circuit and hiccup‑mode protection.
Covers: Introduction · Input Characteristics · Output Characteristics · General Specifications · Environmental · Models & Ratings

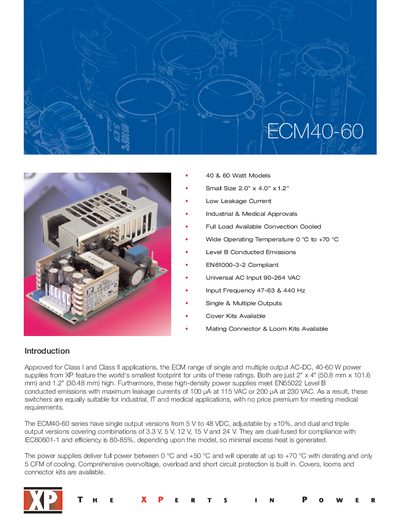

XP Power ECM40-60 Series Power Supply Datasheet
The ECM40-60 series from XP Power offers compact 40‑60 W AC‑DC power supplies with universal 90‑264 VAC input and a small 2.0" × 4.0" footprint. They meet industrial, IT and medical approvals (EN55022 Class B, EN61000‑3‑2, IEC60601‑1) and feature over‑voltage, overload and short‑circuit protection.
Key specifications include input voltage 90‑264 VAC, input frequency 47‑63 Hz (up to 440 Hz), efficiency 80‑85 % (depending on model), output voltage options from 3.3 V to 48 V, isolation voltage 1500 V, switching frequency 70 kHz, weight ~150 g, and operating temperature –0 °C to +70 °C. Mechanical details, thermal derating curves, and accessory options (covers, looms, connector kits) are also provided.
Covers: Introduction · Input Characteristics · Output Characteristics · General Specifications · Environmental · Models & Ratings
Latest ECM40-60 manuals
XP Power ECM40-60 Power Supply Product Leaflet
Product Leaflet 13 pages · 537 KB · ENThe ECM40‑60 series are compact 40‑60 W AC‑DC power supplies with universal input, multiple output options and medical/industrial approvals.
XP Power ECM40-60 Series Power Supply Datasheet
Datasheet 13 pages · 537 KB · ENThe XP Power ECM40-60 series datasheet provides specifications, environmental ratings, and mechanical details for 40‑60 W AC‑DC power supplies.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in ECM40-60 manuals
What is the input voltage range for the ECM40‑60 power supplies?
The ECM40‑60 series accepts a universal AC input of 90 VAC to 264 VAC.
What efficiency can be expected from the ECM40‑60 units?
Efficiency ranges from 80 % to 85 % depending on the model and load.
