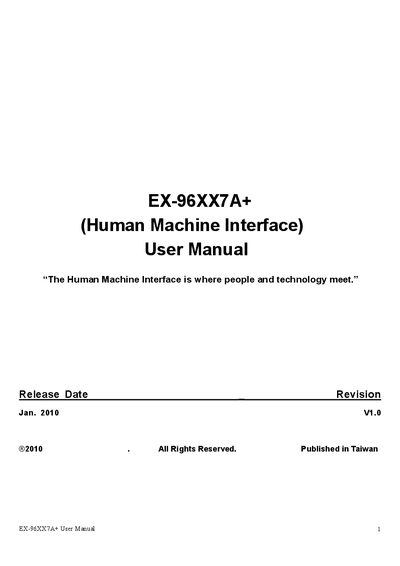

This document is the user manual for EX-96XX7A+ (Human Machine Interface), describing the definition and function of the human machine interface. The manual provides instructions for use and safety precautions.
The EX-96XX7A+ is a fanless Human Machine Interface with a high‑brightness resistive touch TFT‑LCD, Intel® Atom N270 processor and a wide‑range DC power input. It is designed for industrial environments and complies with CE/FCC Class A requirements.
This manual covers safety precautions, unpacking, hardware installation, BIOS configuration, driver installation, touch‑screen setup, and the PenMount control panel utilities, including display‑rotation software and troubleshooting guidance.
| Processor | Intel® Atom™ N270 1.6 GHz |
|---|---|
| Display Type | TFT‑LCD |
| Maximum Resolution | 1280 × 1024 (EX‑96177A+/EX‑96197A+) |
| Power Input | DC 11 ~ 28 V |
| Dimensions (example model) | 231 mm × 176 mm × 99 mm (EX‑96087A+) |
| Operating Temperature | 0 ~ 50 °C |
| IP Rating | IP 65 on front panel |
It accepts a DC power input ranging from 11 to 28 volts.
The device supports Windows CE 5.0, Windows XP Professional, and Windows XP Embedded.
