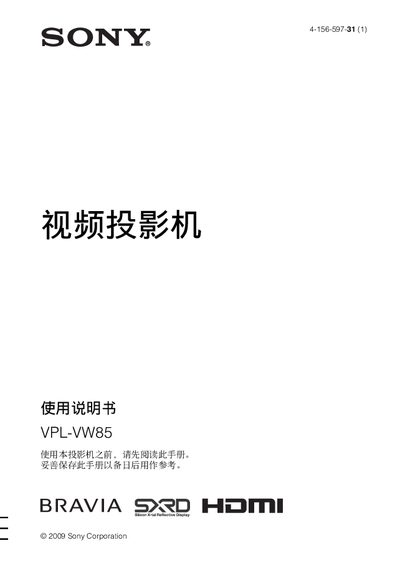

This is a user manual for VPL-VW85 projector, which mainly introduces the installation, connection, use and maintenance of the projector.
This manual covers everything needed to install and operate the Sony VPL‑VW85 video projector. It includes safety warnings, unpacking steps, mounting guidelines, and detailed instructions for connecting to video sources and adjusting image settings.
Additional sections explain HDMI‑CEC control, advanced picture modes such as x.v.Color, lamp replacement, and troubleshooting. Technical specifications of the projector are listed in the specifications chapter. This manual is written in Chinese.
| Display panel | SXRD, 6.22 million pixels |
|---|---|
| Lamp | 200 W ultra‑high‑pressure lamp (LMP‑H201) |
| Image size | 40 in to 300 in diagonal |
| Maximum resolution | 1920 × 1080 (HDMI only) |
| Power consumption | Maximum 320 W, standby 8 W |
| Dimensions (W×H×D) | 470 mm × 179.2 mm × 482.4 mm |
Leave at least 30 cm of space around the projector to ensure proper ventilation and avoid overheating.
Yes, the projector’s HDMI control uses the HDMI‑CEC standard, allowing basic operations (play, stop, menu) of connected devices.
It uses a 200 W ultra‑high‑pressure lamp (model LMP‑H201) that contains mercury and must be disposed of according to local regulations.
