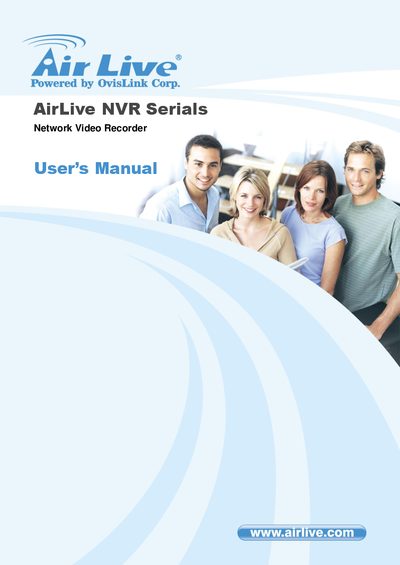

AirLive NVR Serials Network Video Recorder User's Manual, introduces the features and characteristics of this product
This manual introduces the AirLive NVR series, a network video recorder designed for home, retail, and small‑office surveillance. It explains how to connect up to four IP cameras, configure recording settings, and use features such as PTZ control, motion detection, and e‑map live monitoring.
The guide also covers hardware installation, system requirements, playback functions, and system setup tasks like backup, restore, and hard‑drive management. An appendix lists compatible hard‑drive models and specifications. This manual is written in Chinese.
| Model | NVR |
|---|---|
| CPU | Marvell 500 MHz |
| Memory | 128 MB DDR RAM |
| Hard‑drive support | 2 × SATA II, up to 2 TB total |
| Network | Gigabit Ethernet (10/100/1000 Mbps) |
| Video compression | H.264, MPEG‑4, MJPEG |
| Maximum resolution | 1280 × 1024 |
| Maximum frame rate | 120 fps @ 1280 × 1024 |
| Audio | Two‑way audio |
| PTZ control | Supported |
It can connect up to four IP‑based cameras.
The NVR supports two SATA II drives for a total capacity of up to 2 TB.
The device supports H.264, MPEG‑4 and MJPEG formats.
