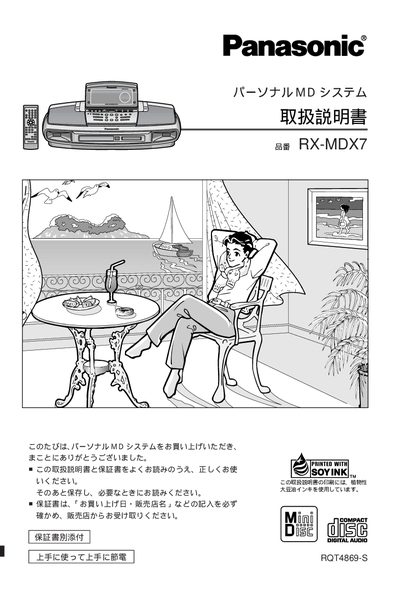

This manual explains how to set up the Panasonic RX-MDX7 personal MD system, including power connection, antenna installation, and accessory verification. Safety precautions and proper handling of the device, battery, and cables are detailed to prevent injury or damage.
Operating instructions cover the use of the remote control, menu navigation, DEMO and ECO functions, playback of MD and CD media, timer settings, and troubleshooting. The final sections list the main technical specifications, warranty information, and service contacts. This manual is written in Japanese.
| Frequency range | 76.0 – 90.0 MHz (TV1‑3ch) |
|---|---|
| Recording method | Magnetic field modulation overwrite |
| Playback method | Semiconductor laser optical pickup |
| Subcarrier frequency | 44.1 kHz |
| Power supply | AC 100 V, 50/60 Hz |
| Dimensions (W×H×D) | 560 mm × 150 mm × 310 mm |
| Weight (without batteries) | 6.0 kg |
| Standby power (ECO on) | 0.9 W |
| Battery type | 2 × AA (DC 3 V) |
When the ECO function is set to ON, the standby power consumption is 0.9 W.
