This manual introduces the features and characteristics of SC-PM57MD, including support for high-speed recording (up to 5 times) and USB connection.

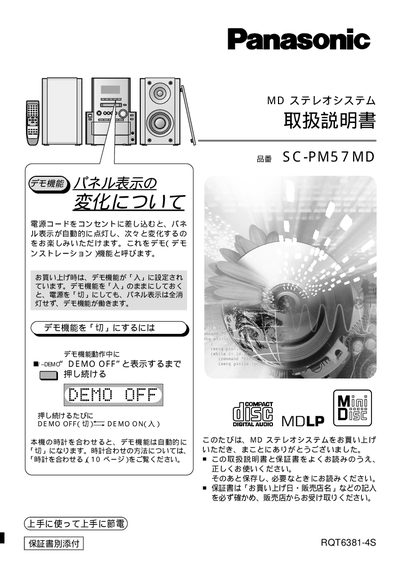

This user manual explains how to install and use the Panasonic SC-PM57 MD stereo system. It covers safety precautions, the demo function that runs automatically on power‑on, and basic operation such as clock setting and power control.
The guide details the system’s features, including a 5‑disc CD changer, USB connection, speaker wiring, remote‑control battery replacement, and technical specifications such as amplifier output, tuner ranges, recording formats, and dimensions. This manual is written in Japanese.
| Amplifier maximum output | 18W+T18W |
|---|---|
| Tape speed | 4.8 cm/s |
| Sampling frequency | 44.1 kHz |
| Laser wavelength | 780 nm |
| Recording time (stereo, LP2 mode) | 80 min |
| Dimensions (W×H×D) | 179 × 241 × 374 mm |
Refer to page 10 of the manual for the clock‑setting procedure; once the clock is set, the demo function automatically turns off.
The remote uses two AA (単3形) alkaline batteries.
Connect white‑tube cables to the high‑frequency terminals and red/black‑tube cables to the low‑frequency terminals.
