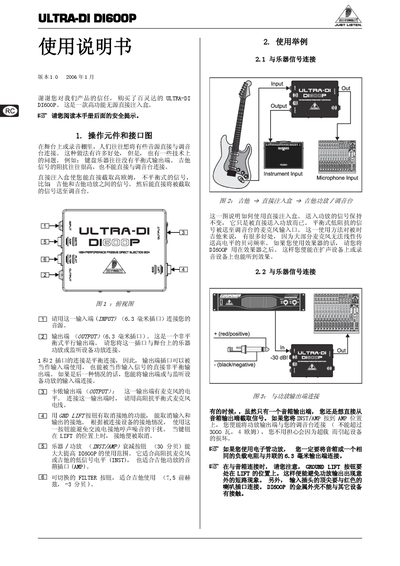

This document provides instructions for using the ULTRA-DI DI600P passive direct injection box from Behringer, including operation elements and interface diagrams, usage examples, and technical specifications.
This manual explains how to connect the ULTRA‑DI DI600P to instruments and mixers, describes the function of its input, output, ground‑lift and attenuation controls, and offers wiring diagrams for typical studio and live‑sound setups.
Safety guidelines, dimensional data, warranty information, and technical specifications such as input level, attenuation range, frequency response, and power limits are also included to help users operate the device reliably. This manual is written in Chinese.
| Input level | 44 dBu |
|---|---|
| Attenuation | 30 dB |
| Dimensions (H × W × D) | 35 mm × 128 mm × 95 mm |
| Maximum output power | 3000 W into 4 Ω |
Connect the instrument to the 6.3 mm unbalanced input jack (标记为“CAWPLT”) and use the 6.3 mm output jack (标记为“O07PU7D”) for the balanced output to a mixer or amplifier.
Do not exceed 3000 W into a 4 Ω load; staying within this limit prevents damage to the device.
