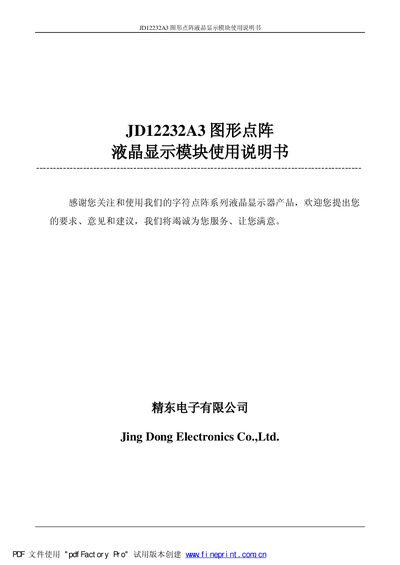

JD12232A3 graphic dot matrix liquid crystal display module user manual, which introduces the basic characteristics of the liquid crystal driver IC, module basic characteristics, appearance size, working parameters, electrical characteristics, interface description and other content.
The JD12232A3 graphics lattice LCD module is a yellow‑background, black‑text LCD with a view size of 61.00 × 18.00 mm and a 1/32 duty, 1/6 bias driving scheme. It supports 16 common lines and 61 segment outputs, providing a 2560‑bit display RAM (80 × 8 × 4 bits) and compatible MPU interfaces for 68‑series and 80‑series controllers.
The manual details the electrical characteristics, pin definitions, command set, timing diagrams for both 68‑series and 80‑series MPU interfaces, and includes an application example with an 8031 microcontroller. Instructions for resetting, setting display parameters, and entering safety mode are also provided. This manual is written in Chinese.
| View size | 61.00 × 18.00 mm |
|---|---|
| Display type | Yellow background, black characters |
| Logic supply voltage (VDD‑VSS) | 2.4 ~ 6.0 V |
| LCD drive voltage (Vdd‑VLCD) | 3.0 ~ 13.5 V |
| Operating temperature | 0 ~ 55 °C (normal) / -20 ~ 70 °C (wide) |
| Input high level (VIH) | ≥2.0 V |
| Input low level (VIL) | ≤0.8 V |
| Output high level (VOH) | ≥2.4 V |
| Output low level (VOL) | ≤0.4 V |
| Maximum working current | 2.0 mA |
The module operates with a logic supply voltage of 2.4 V to 6.0 V.
Apply a reset pulse to the /RST pin (rising edge for 68‑series MPU, falling edge for 80‑series MPU) and keep the pin high (or low) after the reset.
