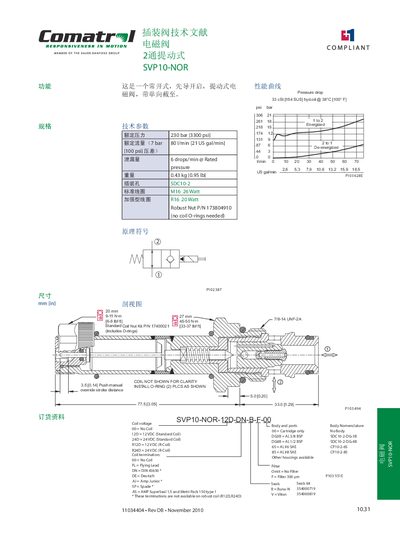

This is the product literature of 10.31 cartridge valve, including ordering information, function, size, specification, performance curve, principle symbol, technical parameters, sectional view and other information.
This manual describes the Comatrol SVP10‑NOR hydraulic valve, covering its pressure ratings, oil requirements, and available coil configurations. It includes detailed part numbers, O‑ring kits, and termination options for both standard and robust coil versions.
Key sections provide pressure‑drop data, recommended hydraulic oil viscosity, weight and power consumption figures, as well as step‑by‑step installation instructions and body‑port nomenclature for proper integration into hydraulic systems.
| Hydraulic oil viscosity | 33 cSt (154 SUS) at 38 °C (100 °F) |
|---|---|
| Maximum operating pressure | 230 bar (3300 psi) |
| Weight | 0.43 kg (0.95 lb) |
| Standard coil power consumption | 26 W |
| Robust coil power consumption | 20 W |
The manual recommends 33 cSt (154 SUS) hydraulic oil at 38 °C (100 °F).
The valve is rated for up to 230 bar (3300 psi).
The unit weighs 0.43 kg (0.95 lb).
Standard coils consume 26 W, while robust coils consume 20 W.
