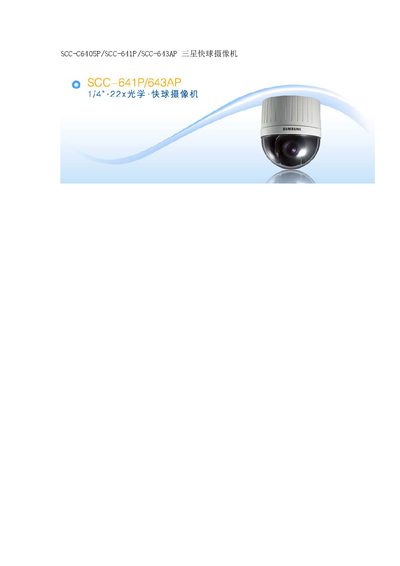

SCC-C6405P/SCC-641P/SCC-643AP Samsung fast ball camera is a high-speed intelligent ball camera with super wide dynamic function and 220x zoom function, which can monitor the scene 360 degrees in all directions and rotate at high speed. The horizontal rotation speed is up to 400 degrees/second and the vertical rotation speed is 200 degrees/second.
The Fast Ball Camcorder series (SCC-C6405P, SCC-641P, SCC-643AP) is a high‑speed, 360° pan‑tilt camera with a 1/4‑inch Super HAD CCD sensor, 22× optical and 10× digital zoom, and low‑light performance down to 0.007 LUX. It supports up to 128 preset positions, three 30‑second auto‑learning paths, and eight privacy‑mask zones.
The manual details technical parameters such as horizontal resolution (480 lines), video output (composite 1.0 Vp‑p BNC), RS‑485/RS‑422 remote control, power requirements (AC 24 V, 1.5 A, ~18 W), and environmental limits (‑10 °C to 50 °C, 90 % RH). It also describes operation speeds, rotation limits, and alarm I/O capabilities. This manual is written in Chinese.
| Image sensor | 1/4 inch Super HAD CCD |
|---|---|
| Horizontal resolution | 480 lines |
| Optical zoom | 22× |
| Digital zoom | 10× |
| Maximum horizontal rotation speed | 400°/s |
| Maximum vertical rotation speed | 200°/s |
| Number of preset points | 128 |
| Privacy mask areas | 8 |
| Minimum illumination (color) | 0.007 LUX |
| Power supply | AC 24 V, 1.5 A, ~18 W |
The camera can rotate horizontally up to 400 degrees per second.
Up to 128 preset points can be saved.
The device provides eight privacy‑mask areas.
The minimum illumination for color mode is 0.007 LUX.
