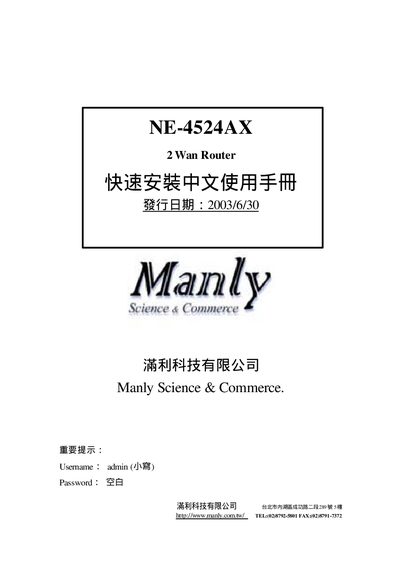

NE-4524AX is a broadband gateway product from Manly Science & Commerce. It has two 10M WAN ports and four 10/100M LAN ports, and supports bandwidth merging or offline backup functions. Its download bandwidth can reach 12M.
The NE-4524AX is a dual‑port broadband gateway that supports both WAN and LAN connections, offering DHCP, Fixed IP, PPPoE, PPTP, and firewall features. It is intended for small‑office or home networking environments and includes a web‑based management interface.
This manual covers hardware overview (front and rear panels), LED status indicators, DIP switch settings, network configuration steps, admin password setup, and procedures for restoring factory defaults. It also lists technical specifications such as processor type, memory, power requirements, and environmental limits. This manual is written in Chinese.
| Processor | ARM7 RISC |
|---|---|
| Flash Memory | 512 KB |
| RAM | 4 MB |
| WAN Ports | 4 × 10/100 Mbps RJ‑45 |
| Power Input | 9 V DC |
| Operating Temperature | 0 °C ~ 55 °C |
| Operating Humidity | 5 % ~ 95 % |
| Dimensions | 245 × 37 × 30 mm |
| Certifications | FCC, CE, Class B |
LEDs show the status of LAN links, WAN links, power, and error conditions; each LED turns green when the corresponding port is active and blinks for activity.
