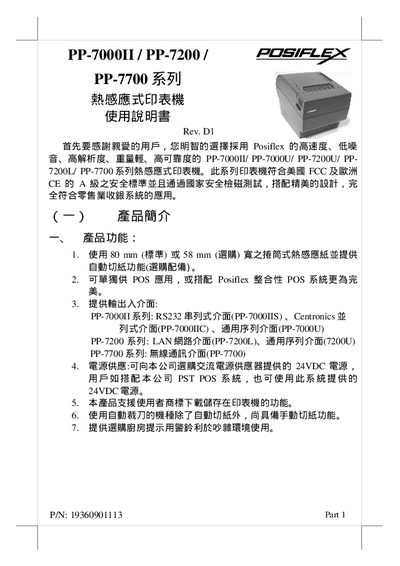

This document introduces Posiflex's thermal receipt printer series, including PP-7000II, PP-7000U, PP-7200U, PP-7200L, and PP-7700. These printers are known for their high speed, low noise, high resolution, lightweight, and high reliability. They meet the safety standards of the United States and Europe and are suitable for retail point-of-sale systems.
This manual introduces the PP-7700 series thermal printer, highlighting its high‑speed printing, optional 80 mm or 38 mm thermal paper, and various interfaces such as wireless (DG‑2000 dongle). It also lists optional accessories like paper roll changers and wall‑mount kits.
Installation steps cover basic equipment, wiring (RS‑232, USB, LAN, or wireless), power supply requirements, paper loading, and configuration of network settings. The guide includes operating environment recommendations, routine maintenance, self‑test procedures, and a detailed troubleshooting section. This manual is written in Chinese.
| Print method | Thermal line matrix |
|---|---|
| Print width | 64 mm |
| Print speed | 180 mm/s |
| Power input | 24 V DC ±5 % |
| Dimensions (W×D×H) | 148 mm × 199 mm × 144 mm |
| Weight | 1.35 kg |
| Paper roll outer diameter | max 83 mm |
| Paper thickness | 60‑80 µm |
| Power supply output voltage | +24 V DC |
