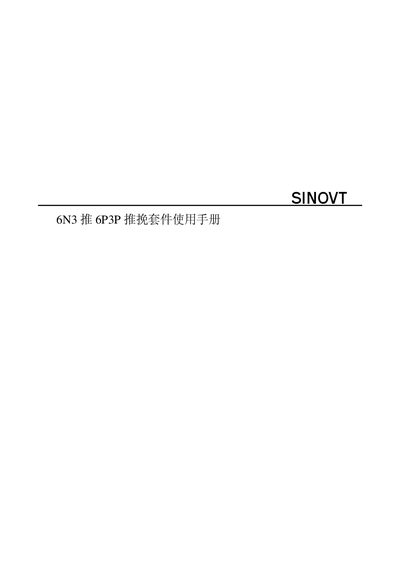

SINOVT 6N3 push 6P3P push-pull kit user manual, introduces the features and characteristics of this kit, including model introduction, receiving inspection, assembly instructions, circuit diagram, assembly diagram, whole machine debugging, common installation fault handling, and machine upgrade
The SINOVT 6N3 push‑pull kit is a high‑quality audio amplification module that uses a 5 kΩ output transformer and 6P3P (6L6) power tubes to deliver low‑distortion sound. The kit includes all necessary components, wiring diagrams and a chassis designed for easy assembly.
This document covers model introduction, receiving inspection, detailed assembly steps, circuit and assembly drawings, full‑system debugging, common fault troubleshooting, and optional upgrades. It also provides service contact information for further assistance. This manual is written in Chinese.
| Output transformer rating | 5 kΩ |
|---|---|
| Power tube type | 6P3P (6L6) |
| Capacitor C16 value | 47 µF 400 V |
Adjust the potentiometers on the negative‑pressure PCB until the voltage on each power‑tube screen‑grid pin (pin 8) reads about 0.44 V.
