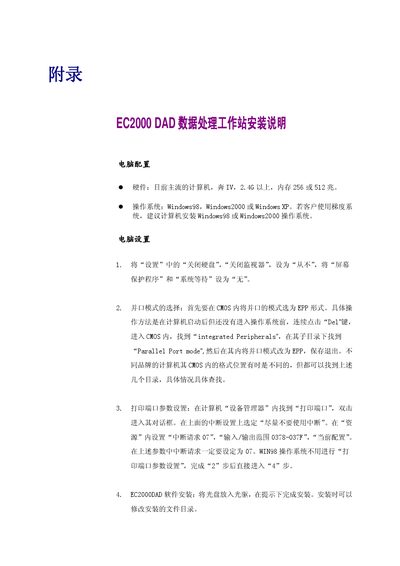

EC2000 DAD data processing workstation installation instructions, including computer configuration, computer settings, communication testing, array parameter selection, and help customers create the corresponding folders
This manual explains how to prepare a computer for the EC2000 DAD data treatment workstation. It lists the required hardware (a mainstream PC with a Pentium IV 2.46 GHz CPU and 256‑512 MB RAM) and supported operating systems (Windows 98, Windows 2000, or Windows XP).\n\nDetailed steps are provided for configuring the parallel port to EPP mode, setting printer‑port IRQ and I/O range, installing the DAD software from CD, performing communication tests, selecting array parameters, and creating the necessary folder structure on the host PC. All connection work should be done with power off to avoid communication issues. This manual is written in Chinese.
| CPU | Pentium IV 2.46 GHz or higher |
|---|---|
| Memory | 256 MB or 512 MB |
| Supported Operating Systems | Windows 98, Windows 2000, Windows XP |
| Parallel Port Mode | EPP |
| Printer Port IRQ | 07 |
| Printer Port I/O Range | 0378‑037F |
The workstation supports Windows 98, Windows 2000, and Windows XP.
Enter the BIOS (press Del during boot), locate the Parallel Port mode setting under Integrated Peripherals, and change it to EPP.
Set the printer port IRQ to 07.
Create four folders named “方法文件”, “DAD 文件”, “色譜文件”, and “光譜圖庫”.
