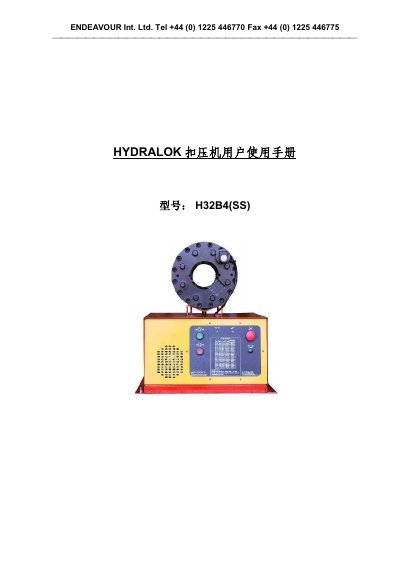

This manual provides detailed instructions on the use, maintenance and servicing of the H32B4(SS) swaging machine
The Hydralok H32B4(SS) is a swaging (crimping) machine designed for hydraulic hose assemblies. It features a 2.2 kW motor, a capacity of 3/16‑1 inches, and a compact 900 × 600 × 900 mm footprint.
The manual covers warranty conditions, conformity declaration, safety regulations, technical specifications, handling, preliminary checks, lighting, routine maintenance, detailed operating instructions, swaging charts, service procedures, calibration guidance, spare‑part lists, electrical diagrams and proper grease usage. This manual is written in Chinese.
| Capacity | 3/16英寸-1英寸 |
|---|---|
| Motor Power | 2.2 kW |
| Dimensions (packed) | 900 × 600 × 900 mm |
| Weight | 130 kg |
| Voltage | 220/240‑1‑50 Hz or 380/440‑3‑50 Hz |
| Control Voltage | 24 V AC & DC |
| Noise Level | ≤ 73 dB(A) |
