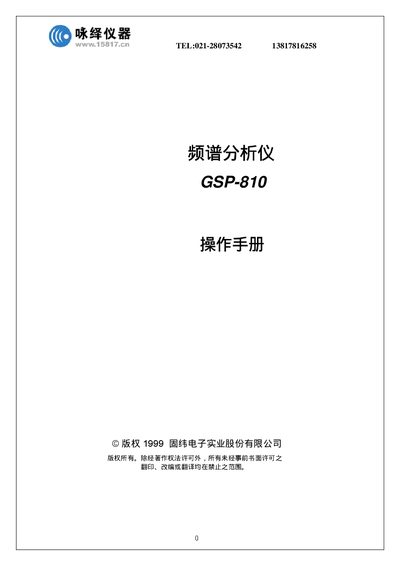

This manual covers safety symbols, grounding requirements, and environmental limits for the GSP-810 spectrum analyzer. It explains how to set up the instrument, connect it to a PC via RS‑232, and use the supplied SDL software for measurement and control.
Technical specifications such as frequency range, resolution, noise floor, power input range, and operating temperature are listed, along with warranty information and compliance declarations for EMC and safety standards. This manual is written in Chinese.
| Frequency range | over 1 GHz |
|---|---|
| Frequency resolution | 1 kHz |
| Noise floor | -95 dBm @30 kHz |
| Power input range | -100 dBm to +30 dBm |
| Power protection | up to +30 dBm |
| Operating temperature | +18 °C to +28 °C |
| Maximum relative humidity | 90 % |
| Storage temperature range | 0 °C to +40 °C |
| Maximum operating altitude | 2200 m |
The manufacturer provides a one‑year free repair and parts replacement warranty from the date of shipment.
The instrument must be connected to a grounded AC outlet; extension cords without a protective conductor must not be used.
Use the CHECK function; it sends a test signal to the analyzer and confirms a correct response, indicating a proper serial connection.
The analyzer provides a frequency stability of ±10 ppm.
