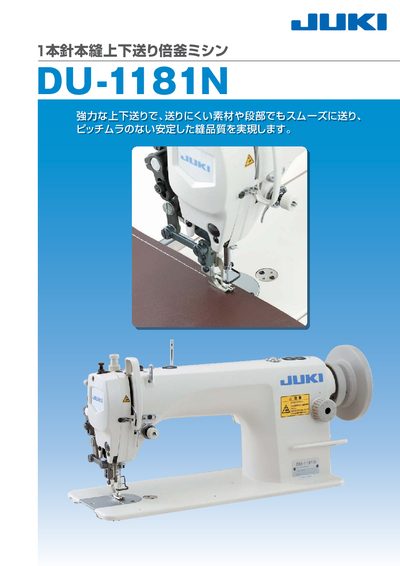

The DU-1181N is a sewing machine produced by JUKI. It has a strong up and down feed function that can easily sew various difficult to sew materials and seams. It also has a maximum presser foot rise of 15mm and a maximum stitch length of 9mm, which can meet various sewing needs. In addition, it is also equipped with a vertical 2-ply pot, which can reduce the frequency of thread replacement and improve work efficiency.
The manual introduces the JUKI DU-1181N sewing machine, highlighting its high presser foot lift, a maximum stitch length of 9 mm, a needle bar stroke of 36.5 mm, and adjustable feed mechanisms suitable for a wide range of fabrics.
It also covers operating procedures, pitch and cam adjustments, an automatic oiling system using JUKI MAGHINE OIL No.7, and provides contact information for JUKI sales centers throughout Japan. This manual is written in Japanese.
| Maximum stitch length | 9 mm |
|---|---|
| Needle bar stroke | 36.5 mm |
| Presser foot lift (manual) | 5 mm |
| Presser foot lift (maximum) | 15 mm |
| Alternating feed amount | 5 mm |
| Recommended oil | JUKI MAGHINE OIL No.7 (ISU VG7 equivalent) |
| Thread size range | #40‑#8 |
| Compatible needles | DPX 17, #14, DBX1 |
| Head weight | 31 kg |
The machine can produce a maximum stitch length of 9 mm.
Use JUKI MAGHINE OIL No.7, which is equivalent to ISU VG7.
The machine accepts DPX 17, #14, and DBX1 needles.
