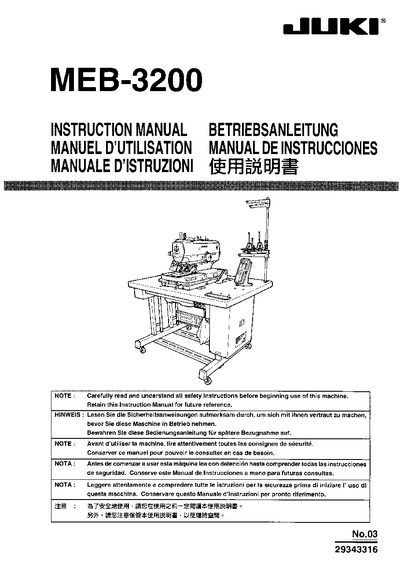

This manual covers essential safety instructions, proper installation, and preparation before operating the MEB-3200. It details the machine’s components, operation panel functions, and adjustment procedures.
Additional sections describe maintenance routines, troubleshooting, error lists, and technical specifications such as sewing speed, stitch length, power consumption, and dimensions, helping users keep the machine running efficiently.
| Sewing speed | 400 to 2,200 rpm (adjustable in 100 rpm steps) |
|---|---|
| Stitch length | 10 to 38 mm |
| Stitch bite width | 2.0 to 3.2 mm |
| Lift of presser foot | 13 mm (max 16 mm) |
| Power consumption | 550 VA |
| Dimensions (W×L×H) | 1,060 mm × 780 mm × 1,230 mm (excluding thread stand) |
| Gross weight | 185 kg |
| Air pressure | 0.49 MPa |
| Air consumption | 6 L/min (8‑cycle/min) |
| Noise level | 81.5 dB(A) at 2,000 rpm |
All safety devices must be in position when the machine is ready for work or in operation.
The power plug must be attached by electric technicians and connected to a grounded receptacle.
JUKI New Defrix Oil No. 2 is the recommended lubricating oil.
The sewing speed is adjustable from 400 to 2,200 rpm.
