B1B10 is a single-phase controller used to control the motor of roller shutters, doors, or windows. It has a built-in wireless receiver and can memorize the codes of remote controllers. It can be operated through remote control or switches in an open-stop-close-stop manner. It also has an automatic door closing function.

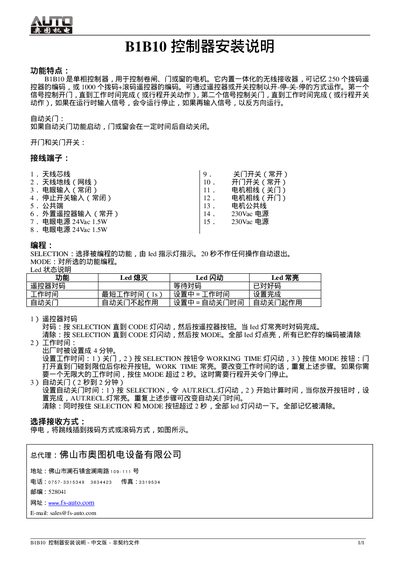

This manual describes the B1B10 single‑phase controller, which can operate motors, pumps or valves. It includes a built‑in wireless receiver and supports up to 250 code‑based controllers or 1000 codes plus a button controller. The device offers start‑stop‑start operation, automatic shut‑off, and programmable working times.
The guide explains wiring connections, LED indicator functions, code programming, auto shut‑off timing, and how to clear stored codes. It also details power requirements (24Vac 1.5W and 230Vac) and provides step‑by‑step instructions for setting working time and auto‑close intervals. This manual is written in Chinese.
| Power Input (low voltage) | 24Vac 1.5W |
|---|---|
| Power Input (high voltage) | 230Vac |
