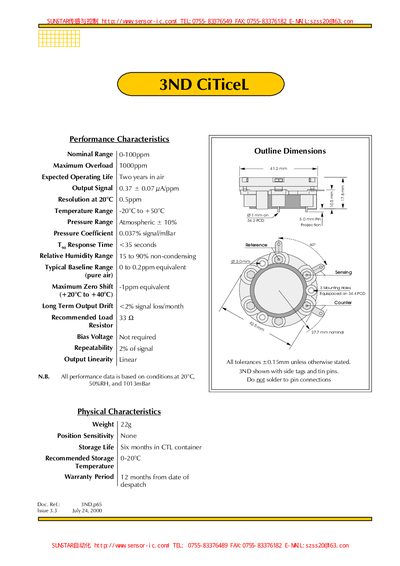

The 3ND nitrogen dioxide CiTiceL from City Technology is a compact gas sensor designed for air monitoring. It offers a nominal detection range of 0‑100 ppm with a maximum overload of 1000 ppm and is rated for two years of operation in air.
Key performance data include a response time under 35 seconds, a temperature range of roughly –20 °C to 50 °C, and a pressure coefficient of 0.037 %/mBar. The sensor can be ordered with side tags, gold‑plated PCB pins, or both, and is supplied with a 33 Ω recommended load resistor. Warranty is 12 months from shipment.
| Nominal Range | 0‑100 ppm |
|---|---|
| Maximum Overload | 1000 ppm |
| Expected Operating Life | Two years in air |
| Output Signal | 0.37‑0.07 Appm |
| Temperature Range | ≈ –20 °C to 50 °C |
| Pressure Range | Atmospheric ±10 % |
| Pressure Coefficient | 0.037 %/mBar |
| Response Time | < 35 seconds |
| Relative Humidity Range | 15 % to 90 % non‑condensing |
| Long‑Term Output Drift | < 2 % signal loss/month |
| Recommended Load | 33 Ω resistor |
| Bias Voltage | Not required |
| Repeatability | 2 % of signal |
| Weight | 22 g |
| Storage Life | Six months in CTL container |
| Recommended Storage Temperature | 0 °C to 20 °C |
The sensor detects nitrogen dioxide from 0 to 100 ppm.
Its response time is less than 35 seconds.
A 33 Ω resistor is recommended.
