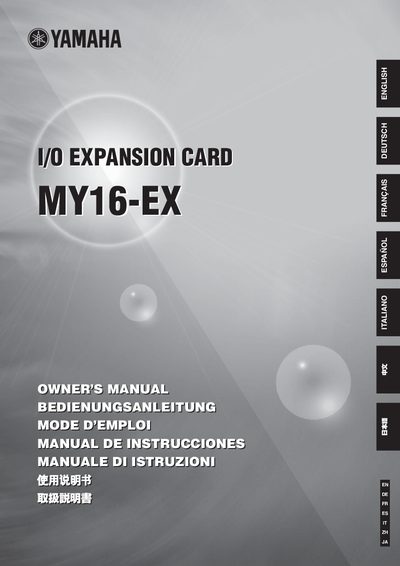

Yamaha MY16-EX I/O Expansion Card Owner’s Manual

This document is the MY16-EX Owner's Manual, which describes the features and characteristics of the product.

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 617 KB
Updated: 28 September, 2023
MD5 checksum: 0578BB439B6B9F5BEE09085610E3C47C
PDF: Yamaha MY16-EX I/O Expansion Card Owner’s Manual PDF

About this manual

This Owner’s Manual explains how to install and use the Yamaha MY16-EX I/O expansion card. It includes important safety notices, FCC compliance requirements, and guidance on using only the supplied high‑quality shielded cables.

The manual also lists the card’s physical dimensions, connector types (RJ‑45 CAT5e), supported audio sample rates, and provides contact information for Yamaha distributors worldwide.

What's inside

Important Notice
FCC Compliance
Connector Overview
Dimensions
Appendix
Contact Information

Specifications

Connector type	RJ‑45 CAT5e

Frequently asked questions

What type of cable should be used with the MY16-EX?

Only high‑quality shielded cables supplied with the product may be used.
