MX7 handheld wireless terminal is a rugged and reliable handheld mobile terminal. It is an ideal tool for conducting various data acquisition applications in warehouses and distribution centers. The magnesium alloy body is designed to be comfortable to use, and the light and strong body is suitable for large-scale scanning operations. Its full-range scanning capability allows users to scan bar codes from close to 4 inches to 40 feet, greatly improving work efficiency. When used in noisy environments, the built-in vibrator can be activated to trigger the vibrator when the barcode is successfully scanned to remind the user. MX7 integrates intelligence, fast computing speed, and flexibility. The latest Windows® CE 5.0 operating system, together with the Intel® XScale® PXA255 processor, MX7 can be put into work at any time. Combined with 802.11 a/b/g wireless component, you are ready for today's and future business opportunities that require real-time data acquisition.
The LXE MX7 is a rugged handheld wireless terminal designed for logistics and warehouse environments. It runs Windows CE 5.0 Professional on an XScale PXA255 400 MHz processor with up to 128 MB RAM and supports SD cards for storage.

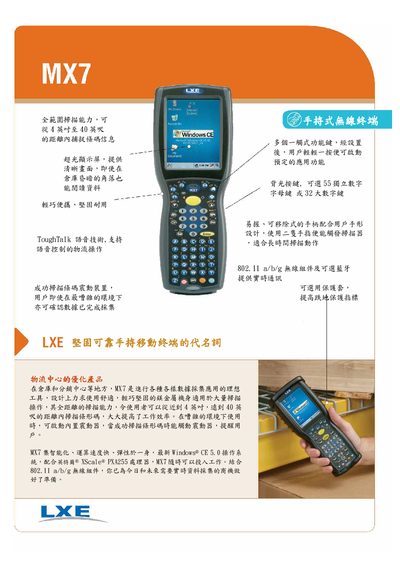

The device offers 802.11 a/b/g wireless connectivity, optional Bluetooth, a 3.5" 240 × 320 color TFT display, and a rechargeable 2200 mAh 7.2 V battery. It is rated IP65, operates from –10 °C to 45 °C, and complies with MIL‑STD‑810F and various EMC and safety standards. This manual is written in Chinese.
| Processor | XScale PXA255 400 MHz |
|---|---|
| RAM | 128 MB |
| Storage | 128 MB or 512 MB SD card |
| Operating System | Windows CE 5.0 Professional |
| Battery | 2200 mAh, 7.2 V rechargeable |
| Wireless (Wi‑Fi) | 802.11 a/b/g (2.4 GHz) and optional 5 GHz |
| Humidity Range | 5 % to 95 % |
| Ingress Protection | IP65 |
| Mechanical Standard | MIL‑STD‑810F |
| Safety Standards | UL 60950, CSA C22.2 No. 60950, IEC 60950 |
The MX7 runs Windows CE 5.0 Professional.
It supports 802.11 a/b/g Wi‑Fi and optional Bluetooth.
The device uses a 2200 mAh, 7.2 V rechargeable battery.
Yes, it is rated IP65, meets MIL‑STD‑810F, and is designed for use in extreme temperature and humidity conditions.
