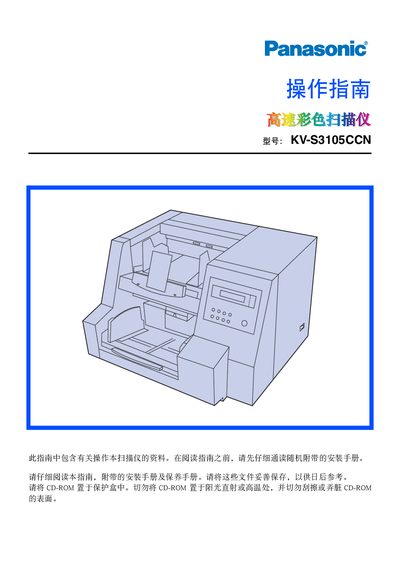

This is the operation manual for Panasonic KV-S3105CCN high-speed color scanner, which introduces the system requirements, installation method and usage method of the scanner.
This manual explains how to install, configure, and operate the Panasonic KV‑S3105CCN high‑speed colour scanner. It covers system requirements, scanner settings, paper handling, and safety precautions for users and service technicians.
Key sections include detailed component descriptions, LCD screen guidance, paper‑feed adjustments, cleaning procedures, consumable replacement, technical specifications, and a troubleshooting guide with error codes and remedies. This manual is written in Chinese.
| Scan width | 302 mm |
|---|---|
| Optical resolution | 400 dpi |
| Paper feeder capacity | 1000 sheets (64 g/m²) |
| Maximum power consumption (100‑120 V) | 3 A |
| Dimensions (W×D×H) | 627 × 546 × 415 mm |
| Weight | 52 kg |
The feeder can hold up to 1000 sheets of 64 g/m² paper.
