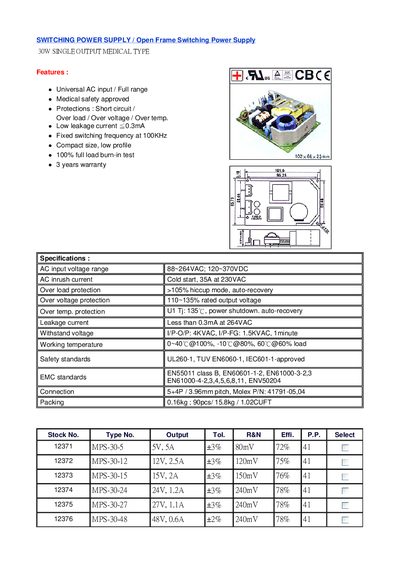

The 30W SINGLE OUTPUT MEDICAL TYPE switching power supply is a product of Taiwan Lynx Co., Ltd. It has full range universal AC input, medical safety approval, short circuit/overload/overvoltage/overtemperature protection, low leakage current≦0.3mA, fixed switching frequency 100KHz, compact size, low profile, 100% full load burn-in test and 3 years warranty.
The Lynx MPS-30 series is a 30 W open‑frame switching power supply designed for medical applications. It offers a universal AC input, compact low‑profile design, and a range of single‑output voltages. Key specifications include a fixed 100 kHz switching frequency, low leakage current (≤0.3 mA), and multiple safety certifications. The unit undergoes a 100 % full‑load burn‑in test and is backed by a three‑year warranty.
| Input voltage range | 88~264VAC; 120~370VDC |
|---|---|
| Switching frequency | 100 kHz |
| Leakage current | ≤0.3 mA |
It meets medical safety approvals and standards such as UL260‑1, TUV EN6060‑1, IEC601‑1, EN55011 class B, EN60601‑1‑2, EN61000‑3‑2/3, EN61000‑4‑2/3/4/5/6/8/11, and ENV50204.
The unit is covered by a three‑year warranty.
