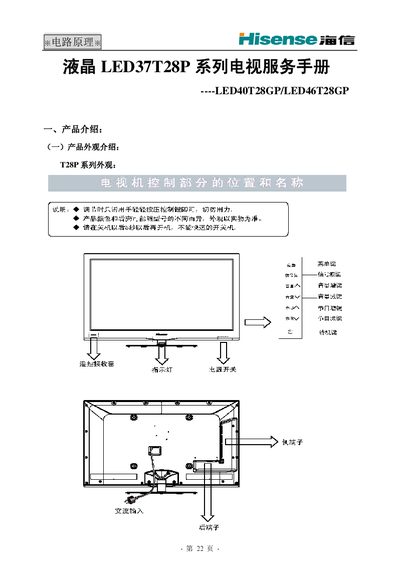

This service manual provides detailed introduction of LED37T28P, LED40T28GP and LED46T28GP series TV products, including appearance, function specifications, features introduction etc.
This service manual covers the LED37T28P, LED40T28GP and LED46T28GP series televisions manufactured by Hisense. It provides an overview of product appearance, functional specifications, supported broadcast standards, and detailed circuit explanations for video, audio and power sections.
The document includes fault diagnosis tables, common failure case studies, and part replacement lists to assist technicians in troubleshooting and repairing these LCD TV models. This manual is written in Chinese.
| Dimensions (without base) – LED37T28P | 918×592×36 mm |
|---|---|
| Weight (without base) – LED37T28P | 12 kg |
| Screen diagonal – LED37T28P | 94 cm |
| Resolution | 1920×1080 |
| Power consumption – LED37T28P | 98 W |
| Power input | ~220 V 50 Hz |
The TV can receive PAL (D/K, I, B/G), NTSC (M) and SECAM signals.
