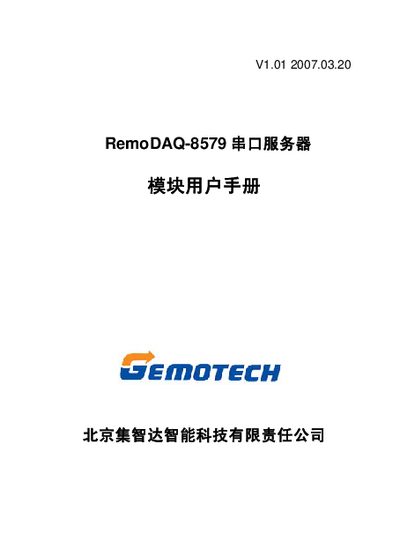

Jizhi RemoDAQ-8579 User Manual

About this manual

The RemoDAQ-8579 is a serial‑to‑TCP/IP gateway that converts RS‑232/RS‑485 data streams into UDP, TCP Server or TCP Client communication over Ethernet. It is intended for connecting PLCs, sensors, or other serial devices to a networked Windows environment.

The manual describes hardware specifications, wiring, configuration tools, and the three communication modes (UDP, TCP Server, TCP Client). It also provides details on the flash‑based firmware, serial port pin‑outs, and the Windows utility used to set parameters. This manual is written in Chinese.

What's inside

• Overview
• Hardware Features
• Operation Modes
• Configuration Tools
• Serial Port Settings

Specifications

Frequently asked questions

What communication modes does the RemoDAQ-8579 support?

It supports three modes: UDP, TCP Server, and TCP Client.

How many serial ports are available and what standards do they use?

The device has two serial ports that can operate as RS‑232 or RS‑485.

What is the maximum baud rate for the serial ports?

The serial ports support baud rates from 4800 up to 115200 bps.

Which Windows utility is used to configure the RemoDAQ-8579?

A Windows Utility provided with the device is used for configuration.
