COM2NET EL-200T Embedded TCP/IP Server Manual

This user manual provides detailed introduction about the COM2NET series embedded TCP/IP protocol serial server EL-200T product features, technical specifications, external interfaces, installation, configuration, communication testing and application examples.

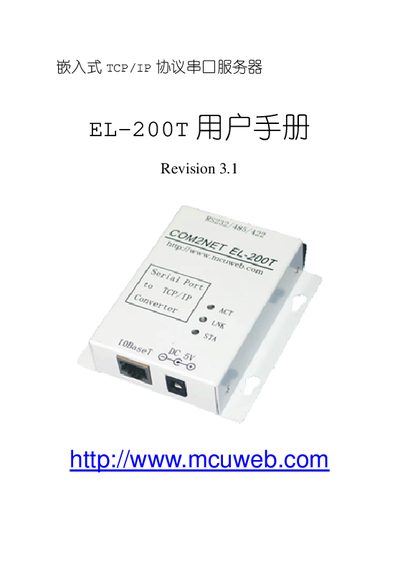

COM2NET EL-200T Embedded TCP/IP Server Manual - cover page
Brand
COM2NET
Category
Other device
Document type
User Manual
Language
English
Pages
13
File format
PDF
File size
1.1 MB
Published
20 November, 2011
Updated
01 October, 2023
MD5 checksum
B1DC36DA9FEFFF53CFE57B312C51D857
PDF
COM2NET EL-200T Embedded TCP/IP Server Manual PDF

About this manual

This manual describes the hardware features and network capabilities of the COM2NET EL-200T embedded TCP/IP server. It includes details on the Ethernet and serial interfaces, power requirements, and physical dimensions.

The document guides users through configuring IP settings, baud rates, and protocol options, and provides troubleshooting tips for common connection issues.

What's inside

  • Introduction
  • Hardware Description
  • Network Configuration
  • Serial Interface Settings
  • Configuration Procedure
  • Appendix

Specifications

Network Interface10Base‑T, RS232/485
Supported ProtocolsTCP/UDP/IP/ICMP, Ethernet, ARP
Baud Rate Range300 bps – 115200 bps
Power SupplyDC 5 V ±10 %
Dimensions92 mm × 64 mm × 24 mm

Frequently asked questions

What network interfaces does the EL-200T support?

The EL-200T provides a 10Base‑T Ethernet port and an RS232/485 serial interface.

Which communication protocols are available on the EL-200T?

It supports TCP, UDP, IP, ICMP, Ethernet, and ARP protocols.

What are the supported baud rates for serial communication?

Serial communication can be set between 300 bps and 115200 bps.

What is the power requirement for the EL-200T?

The device operates from a DC 5 V supply with a tolerance of ±10 %.

Download PDF (1.1 MB)
