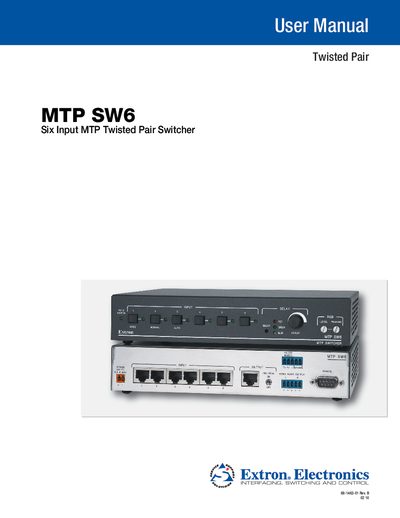

This manual describes the Extron MTP SW6, a 6‑input, 1‑output twisted‑pair switcher used with Extron MTP transmitters and receivers. It covers safety warnings, mounting options, connector settings, and video optimization features.
Key sections include safety instructions, mounting (tabletop, rack, furniture), connector wiring, RS‑232 functions, remote control options, and detailed specifications. The document also provides troubleshooting tips and part numbers for accessories.
| Number of inputs | 6 inputs, 1 output |
|---|---|
| Power supply | 12 V 0.5 A MAX |
| Supported video signals | RGB, component, S‑video, composite |
| RS‑232 baud rate | Up to 38,400 bps |
Read and understand all safety and operating instructions, keep the instructions for future reference, use only approved tools, and ensure the equipment is connected to a grounded power source.
The switcher provides six inputs and one output, all using RJ‑45 connectors.
The unit operates from a 12 V supply with a maximum current draw of 0.5 A.
