QC-2044RT-8 is an 8-way twisted pair transmitter that can be combined with other models of twisted pair transmitters to form 1-to-1, 2-to-1, and 8-to-1 0-1500 m twisted pair video transmitters.
The QC-2044RT-8 is an 8‑channel twisted‑pair video transmitter designed for long‑distance video signal distribution. It can be linked with other QC series transmitters to form various transmission configurations up to 1500 m.

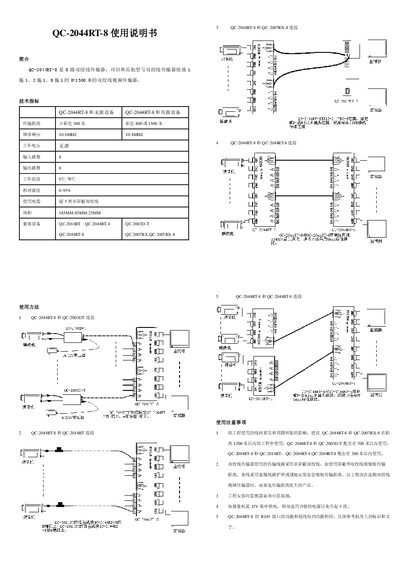

The manual includes technical specifications, detailed wiring instructions for compatible devices, and important usage precautions such as recommended cable types, maximum distances, and grounding requirements. This manual is written in Chinese.
| Transmission distance (color cable) | 300 m |
|---|---|
| Transmission distance (other cable) | 800 m or 1500 m |
| Frequency response (passive) | 10‑6 MHz |
| Working temperature | 0 °C to 70 °C |
| Relative humidity | 0‑95 % |
| Cable type | 5‑category unshielded twisted‑pair |
| Dimensions | 185 mm × 85 mm × 25 mm |
The QC-2044RT-8 provides eight input channels and eight output channels.
It is recommended to keep the distance within 1200 m for that configuration.
The device operates from 0 °C up to 70 °C.
