The PC925L0NSZ0F series is a high-speed 2.5A output optically coupled photovoltaic coupler with an 8-pin DIP package and surface-mount lead forming package. It features high-speed response, wide operating voltage range, and high transient common mode rejection voltage.
The PC925LONSZ0F series is a high‑speed, 2.5 A output, 5 kV isolation optocoupler that incorporates an LED and phototransistor in a single package. It complies with UL1577 double‑protection certification and RoHS directives.

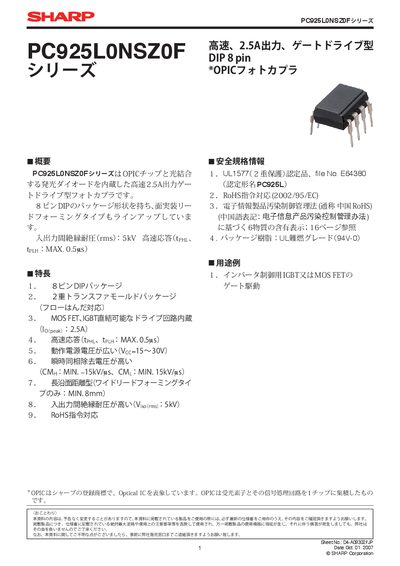

The datasheet provides absolute maximum ratings, electrical and optical characteristics, mechanical dimensions, model lineup, and packaging details for the 8‑pin DIP and surface‑mount variants. This manual is written in Japanese.
| Isolation voltage (rms) | 5 kV |
|---|---|
| Peak output current | 2.5 A |
| Power dissipation (typical) | 250 mW |
| Operating temperature range | -40 °C to +100 °C |
The device is rated for a 5 kV rms isolation voltage between input and output.
The optocoupler can deliver a peak output current of 2.5 A.
It operates from –40 °C up to +100 °C.
Yes, the device complies with the RoHS directive (2002/95/EC).
