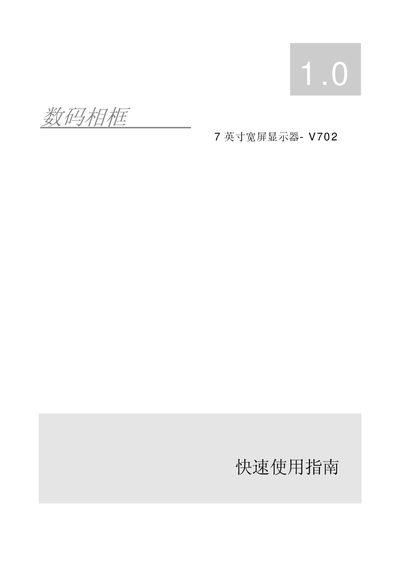

V702 digital photo frame user manual, introduces the appearance, button function, interface description, use guide, menu settings and other content.
This guide walks you through unpacking the V702, explains the front and rear button functions, slot types, and how to insert memory cards or USB drives. It also details menu navigation, setting adjustments, and how to connect the frame to a PC for file transfer.
The document includes the frame's technical specifications, FCC compliance notice, and information on hazardous substances, helping you use the device safely and responsibly. This manual is written in Chinese.
| Screen size | 7-inch widescreen LCD |
|---|---|
| Resolution | 480 x 234 |
| Aspect ratio | 16:9 |
| Audio | Built‑in speaker 1.5 W and headphone jack |
| USB interface | USB 2.0 host, USB 1.1 device |
| Supported memory cards | SD / MMC / MS, MS‑Pro / CF / XD |
| Image formats | JPEG, BMP (1,4,8,24‑bit) |
| Video formats | MPEG‑1 / MPEG‑2 / MPEG‑4 |
| Power adapter | DC 5 V / 2 A |
Insert the memory card into the matching slot with the label facing away from you; ensure correct orientation and do not force the card.
Open the menu, go to the system settings, and select the desired language from the list of supported languages.
Use a USB‑to‑mini‑USB cable to connect the frame’s USB port to the PC; the computer will recognize it as a USB reader.
