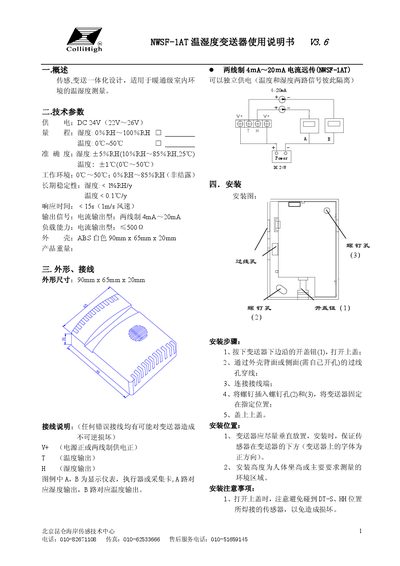

NWSF-1AT Temperature-humidity transmitter instruction manual, suitable for temperature-humidity measurement in indoor environments.
This manual describes the NWSF-1AT temperature‑humidity transmitter, its technical parameters, physical dimensions, and connection terminals. It includes details on power supply, measurement ranges, accuracy, and output signal specifications.
Installation steps, usage guidelines, safety precautions, calibration, storage conditions, inspection procedures, and troubleshooting advice are also covered to ensure reliable operation in indoor environments. This manual is written in Japanese.
| Power supply | DC24V (22V‑26V) |
|---|---|
| Humidity measurement range | 0 %RH‑100 %RH |
| Temperature measurement range | 0 °C‑50 °C |
| Humidity accuracy | ±5 %RH (10 %RH‑85 %RH, 25 °C) |
| Temperature accuracy | ±1 °C (0 °C‑50 °C) |
| Output signal | 4‑20 mA current loop |
| Physical dimensions | 90 mm × 65 mm × 20 mm |
| Housing material | ABS, white |
| Response time | <15 s |
It requires a DC24 V supply, acceptable range 22 V to 26 V.
The device measures temperature from 0 °C up to 50 °C.
The transmitter provides a 4‑20 mA current loop output.
It measures 90 mm × 65 mm × 20 mm.
