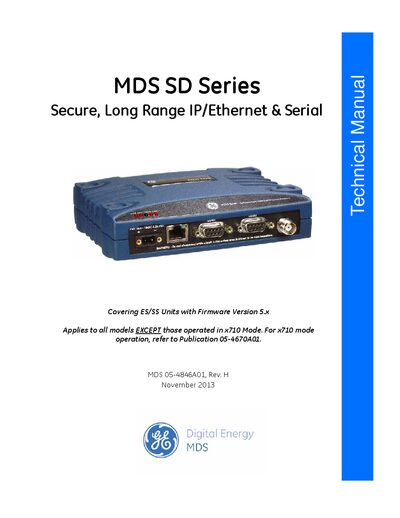

GE MDS SD Series Error Codes

46 codes from pages 98–99 of the manual

This is the list of alarm, error codes the GE MDS manual gives for the SD Series GE MDS SD Series. Find your code below and open it for what the manual says about its causes and what to do.

Alarm codes from p. 98

CodeWhat it meansPage
000 Not currently implemented p. 98
001 Not currently implemented p. 98
002 Frequency not programmed p. 98
003 Authorization fault detected p. 98
004 RF synthesizer out-of-lock condition p. 98
005 Not currently implemented p. 98
006 Not currently implemented p. 98
007 Not currently implemented p. 98
008 Radio not calibrated. Factory calibration is required for proper operation. p. 98
009 DSP download fault p. 98
010 Not currently implemented p. 98
011 Not currently implemented p. 98
012 Receiver time-out. No data received within the specified receiver time-out time. p. 98
013 Transmitter time-out p. 98
014 Alarm Test p. 98
015 Not currently implemented p. 98
068 Excessive Ethernet traffic on interface p. 98

Error codes from p. 99

CodeWhat it meansPage
016 Unit address not programmed. p. 99
017 Not currently implemented. p. 99
018 Not currently implemented. p. 99
019 Not currently implemented. p. 99
020 Not currently implemented. p. 99
021 Not currently implemented. p. 99
022 Not currently implemented. p. 99
023 Not currently implemented. p. 99
024 Not currently implemented. p. 99
025 Not currently implemented. p. 99
026 DC input voltage approaching limit. If the voltage is too far out of tolerance, operation may fail. p. 99
027 Not currently implemented. p. 99
028 Not currently implemented. p. 99
029 RF Output Power not in valid range. p. 99
030 Not currently implemented. p. 99
031 Internal temperature approaching limit. p. 99
032 Booting up. p. 99
033 System initialization complete. p. 99
037 Unexpectedly executing APP 1. p. 99
038 Unexpectedly executing APP 2. p. 99
039 Boot error; active image unknown. p. 99
042 Reprogramming failure. p. 99
064 A socket operation failed. p. 99
071 AP not available. p. 99
041 Forced restart of Ethernet interface. p. 99
043 Reprogramming in progress. p. 99
044 Firmware update successful. p. 99
045 Reprogramming aborted. p. 99
046 Remote rebooted. p. 99
