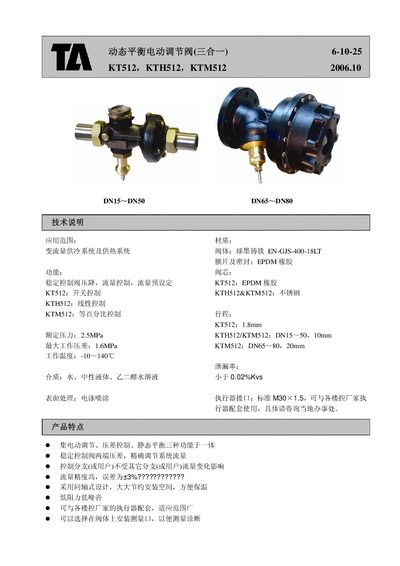

TA 6-10-25 KT512 KTH512 KTM512 Dynamic Balancing Electric Control Valve Technical Manual

The TA 6-10-25 series dynamic balancing electric control valve integrates electric regulation, differential pressure control, and static balance in one unit. It is designed for variable flow cooling and heating systems, offering stable pressure drop control, precise flow adjustment, high flow accuracy (±3%), low resistance, and low noise. The valve body is made of ductile cast iron (EN‑GJS‑400‑1) with EPDM rubber sealing and stainless‑steel or EPDM valve cores depending on the model.

The manual includes technical parameters, product features, actuator selection, connection details, and step‑by‑step installation and maximum flow setting procedures. It lists compatible electric actuators such as EMOTec, TA‑R25‑24, and NV24‑MFT2, and provides wiring diagrams, performance data, and application examples for HVAC and heating systems. This manual is written in Chinese.

Covers: Technical Description · Product Features · Technical Parameters · Function and Principle · Maximum Flow Setting Procedure · Electric Actuator Connections
