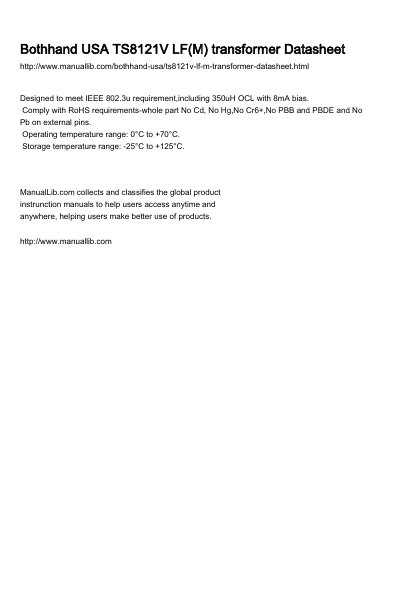

Designed to meet IEEE 802.3u requirement,including 350uH OCL with 8mA bias. Comply with RoHS requirements-whole part No Cd, No Hg,No Cr6+,No PBB and PBDE and No Pb on external pins. Operating temperature range: 0
This document is a datasheet for the Bothhand USA TS8121V LF, a 10/100 Base Pulse Transformer. It is designed to meet IEEE 802.3u requirements, featuring an Open Circuit Inductance (OCL) of 350 uH with an 8mA bias and full RoHS compliance regarding hazardous substances like Cadmium, Mercury, and Lead.
The datasheet provides detailed electrical specifications at 25°C, including insertion loss, return loss, crosstalk, and common mode rejection across various frequency ranges. It also includes mechanical dimensions in millimeters and inches with a suggested pad layout for PCB assembly.
| IEEE Standard | 802.3u requirement |
|---|---|
| OCL with Bias | 350 uH / 8mA |
| Operating Temperature Range | 0°C to +70°C |
| Storage Temperature Range | -25°C to +125°C |
| Turns Ratio | 1CT:1 |
Yes, it complies with RoHS requirements and contains no Cd, Hg, Cr6+, PBB, PBDE, or Pb on external pins.
The device operates within a temperature range of 0°C to +70°C.
