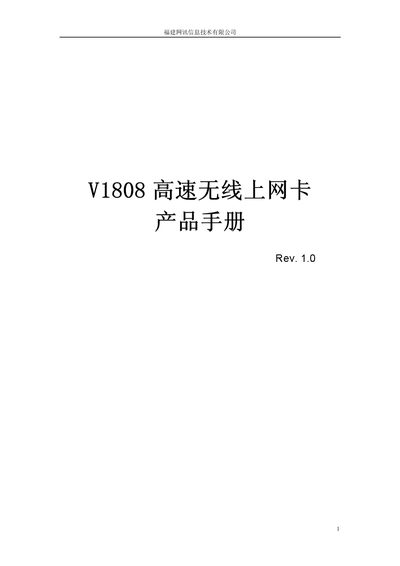

VTION V1808 Wireless Dongle User Manual
The VTION V1808 is a CDMA 1X high‑speed wireless dongle that supports up to 230.4 Kbps data rates via a PCMCIA interface. It operates on the 824.64‑848.37 MHz and 869.64‑893.37 MHz frequency bands and is designed for use with Windows 98/ME/2000/XP systems.
The manual covers safety precautions, installation steps, configuration, and warranty information. Users are instructed to avoid high temperature, moisture, and liquid exposure, and to follow the provided software installation wizard for proper setup. This manual is written in Chinese.
Vtion V1808 specifications
| Model | E1808 |
|---|---|
| Transmit Frequency | 824.64–848.37 MHz |
| Receive Frequency | 869.64–893.37 MHz |
| Dimensions | 85.6 × 54 × 5 mm (L × W × H) |
| Maximum Data Rate | 2.4 Mbps |
| Power Supply | 3.3 V / 700 mA (max) |
| Operating Temperature (Storage) | -30 °C ~ +60 °C |
| Operating Temperature (Use) | -20 °C ~ +50 °C |
| Supported OS | Windows 2000 / XP |
| Modulation Method | OQPSK |
All Vtion V1808 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the driver for the VTION E1808 dongle?
Insert the supplied installation CD into the drive and follow the on‑screen prompts to install the driver.
What is the maximum data speed of the E1808 dongle?
The dongle supports a maximum data rate of 2.4 Mbps.
