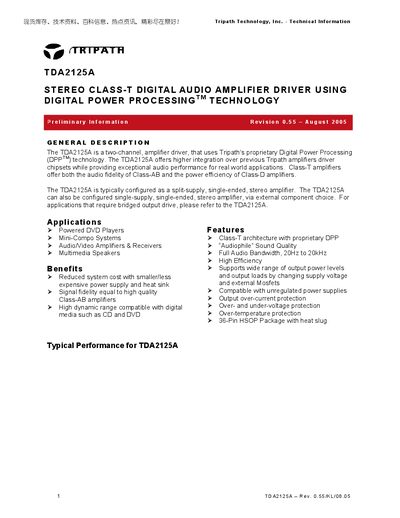

Tripath TDA2125A Stereo Class‑T Audio Amplifier Driver Datasheet
The TDA2125A is a two‑channel amplifier driver that employs Tripath’s proprietary Digital Power Processing (DPP) technology, offering the audio fidelity of Class‑AB with the efficiency of Class‑D. It can be configured as a split‑supply or single‑supply single‑ended stereo amplifier, and also supports bridged output drive.
Typical applications include powered DVD players, mini‑compo systems, audio/video amplifiers and receivers, and multimedia speakers, providing high efficiency, wide output power range, and protection features such as over‑current, over‑/under‑voltage, and over‑temperature safeguards.
TRIPATH TDA2125A specifications
| Channels | Two‑channel |
|---|---|
| Package | 36‑Pin HSOP with heat slug |
| Audio Bandwidth | 20 Hz to 20 kHz |
| Configuration | Split‑supply or single‑supply single‑ended stereo |
Source: Tripath TDA2125A Stereo Class‑T Audio Amplifier Driver Datasheet
All TRIPATH TDA2125A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What technology does the TDA2125A use?
It uses Tripath’s proprietary Digital Power Processing (DPP) technology.
From: Tripath TDA2125A Stereo Class‑T Audio Amplifier Driver Datasheet
What type of amplifier architecture does the TDA2125A use?
It uses a Class‑T architecture with Tripath’s proprietary Digital Power Processing technology.
From: Tripath TDA2125A Stereo Class‑T Audio Amplifier Driver Datasheet
What are the typical applications for the TDA2125A?
Typical applications include powered DVD players, mini‑compo systems, audio/video amplifiers and receivers, and multimedia speakers.
From: Tripath TDA2125A Stereo Class‑T Audio Amplifier Driver Datasheet
