Key facts
- Brand
- Toparm
- Model
- TP428
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-01-05
Start here

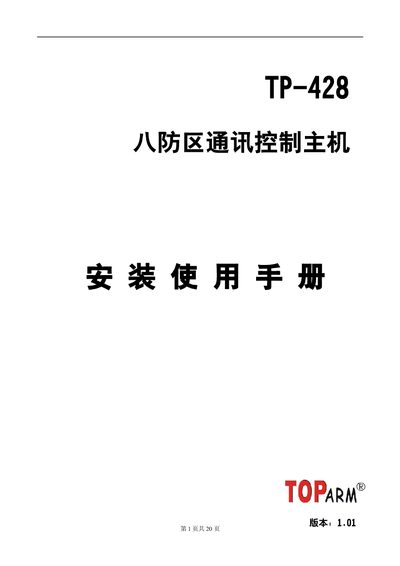

Toparm TP-428 Installation Manual
Installation Guide 20 pages · 1.1 MB · ZH
The TP-428 is a control and communication host for security systems. This manual provides step‑by‑step instructions for installing the chassis, connecting power supplies, backup batteries, and peripheral devices such as detectors and relays.
It also explains the quick‑start procedure, programming codes, zone types, and special functions like telephone monitoring and system time setting. Detailed address tables (418‑441) describe configurable parameters for system behavior. This manual is written in Chinese.
Toparm TP428 specifications
| Operating temperature | 0~45°C |
|---|---|
| Operating humidity | 10%~95% |
| Power supply | 240 V / 18 V AC |
| Standby current | 65 mA |
| Current in alarm state | 115 mA |
| Battery capacity | 6.5 Ah / 12 V |
| Dimensions (W×H×D) | 306 mm × 262 mm × 84 mm |
| Weight | 2.5 kg |
| Supplier code | N771 |
All Toparm TP428 documents by type
Installation Guide 2
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the operating temperature range of the TP428?
The TP428 operates between 0 °C and 45 °C.
How can I reset the TP428 to factory defaults?
Use address 900 to cancel the factory preset; setting it to 0 uses the factory preset, while 15 cancels it.
