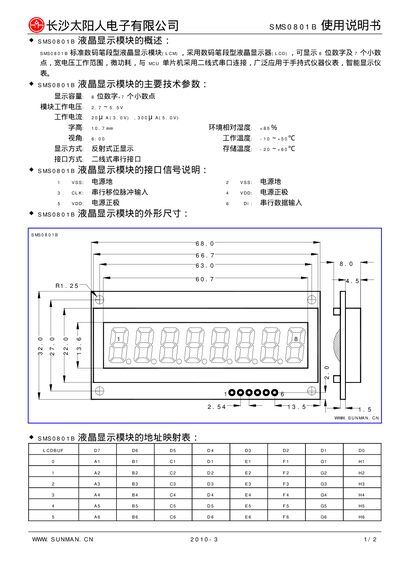

Sunman SMS0801B User Manual
User Manual 2 pages · 51 KB · ZH
The SMS0801B is a liquid crystal display module that can show numeric values with up to seven decimal points. It is designed for use with micro‑controllers via a two‑wire serial interface and can be powered from 3.0 V or 5.0 V sources.
Key features include a character height of 10.7 mm, reflective display type, operating temperature down to –16 °C, and defined electrical parameters such as 20 mA at 3.0 V and 300 mA at 5.0 V. This manual is written in Chinese.
Sunman SMS0801 specifications
| Character Height | 10.7 mm |
|---|---|
| Relative Humidity | < 85 % |
| Display Mode | Reflective positive display |
| Interface Type | Two‑wire serial interface |
| Module Size | 8.8 mm × 8.0 mm × 6.67 mm |
All Sunman SMS0801 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of interface does the module use?
It uses a two‑wire serial interface.
