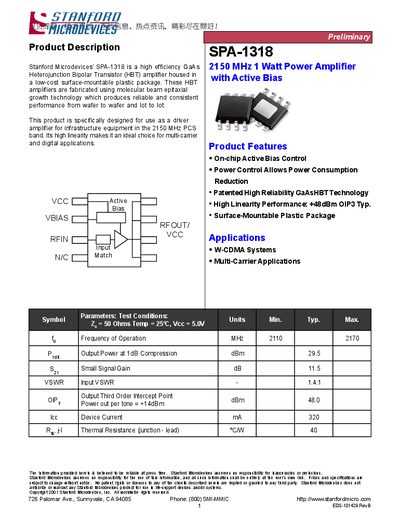

Stanford Microdevices SPA-1318 2150 MHz 1 W Power Amplifier Manual
The SPA-1318 is a high‑efficiency GaAs HBT power amplifier designed for the 2150 MHz PCS band. It offers active bias control, high linearity, and a surface‑mountable plastic package for infrastructure equipment.
The manual includes product features, electrical parameters, absolute maximum ratings, pin descriptions, bias‑circuit schematics, evaluation‑board layout, ordering information, and recommended land‑pattern drawings to aid designers in integrating the device.
STANFORO SPA-1318 specifications
| Frequency of Operation | 2110‑2170 MHz |
|---|---|
| Output Power at 1 dB Compression | 29.5 dBm |
| Small Signal Gain | 11.5 dB |
| Input VSWR | 1.44 |
| Device Current | 320 mA |
| Power Dissipation | 4.0 W |
| Maximum Device Voltage | 6.0 V |
| RF Input Power | 800 mW |
Source: Stanford Microdevices SPA-1318 2150 MHz 1 W Power Amplifier Manual
All STANFORO SPA-1318 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage is recommended for the SPA-1318 bias network?
The manual recommends a 5 V supply for the active‑bias network, with an absolute maximum device voltage of 6 V.
From: Stanford Microdevices SPA-1318 2150 MHz 1 W Power Amplifier Manual
What is the typical output power at 1 dB compression?
The device delivers about 29.5 dBm (≈1 W) output power at the 1 dB compression point.
From: Stanford Microdevices SPA-1318 2150 MHz 1 W Power Amplifier Manual
What is the typical OIP3 performance of the SPA-1318?
The typical OIP3 is +48 dBm.
From: Stanford Microdevices SPA-1318 2150 MHz 1 Watt Power Amplifier Manual
What supply voltage is required for the active bias network?
A 5 V supply (VCC) is required for the active bias network.
From: Stanford Microdevices SPA-1318 2150 MHz 1 Watt Power Amplifier Manual
