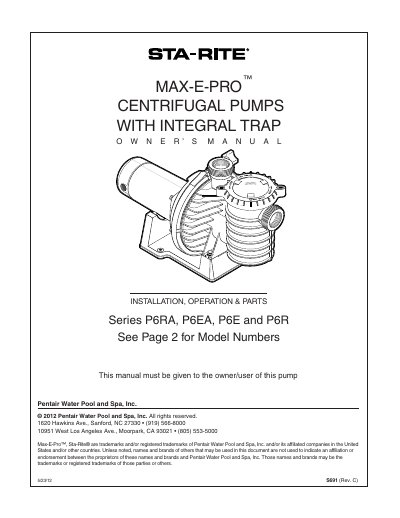

Sta-Rite P6E/P6RA Series Centrifugal Pump Owner's Manual
This owner's manual covers the installation, electrical connection, operation, storage, winterizing, maintenance, troubleshooting, and repair parts list for the Sta-Rite P6E and P6RA Series Self-priming Centrifugal pumps. It is designed to help users correctly operate the equipment to extend pump life and reduce service calls.
Read onlineAll STA-RITE P6E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the safety requirements for suction outlet covers?
All suction outlet covers must be maintained and replaced if cracked, broken, or missing. They must be screw-fastened to the main drain sump.
From: Sta-Rite P6E/P6RA Series Centrifugal Pump Owner's Manual
What is the maximum water velocity allowed through a suction outlet?
The maximum water velocity through any suction outlet must be 1.5 feet per second unless the outlet complies with specific ASME/SNSI specifications.
From: Sta-Rite P6E/P6RA Series Centrifugal Pump Owner's Manual
What are the safety requirements for pressure testing?
Water pressure must be less than 25 PSI (7.5 kg/cm) and water temperature must be less than 100° F (38° C).
What is the minimum requirement for suction outlets?
The system must provide at least two hydraulically balanced main drains equipped with correctly installed, screw-fastened covers.
