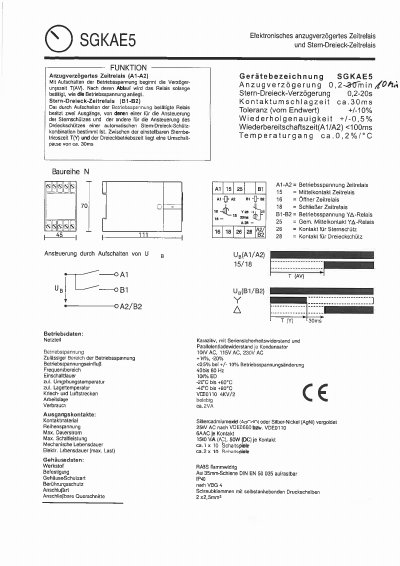

Scharco SGKAE5 Electronic Time Relay Datasheet
The document describes the Scharco SGKAE5, an electronic time relay designed for delay-on-make and star-delta applications. It operates by delaying the relay state upon the application of operating voltage and provides two outputs for controlling star and delta protection in a combined star-delta protection combination. This manual is written in German.
Read onlineScharco SGKAE5 specifications
| Contact switching time | ca. 30ms |
|---|---|
| Tolerance | +/-10% |
| Operating voltage | 15/18 V AC |
| Max. continuous current | 6A AC per contact |
| Max. switching power (AC) | 1500 VA per contact |
| Mounting | DIN rail 35mm |
All Scharco SGKAE5 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the tolerance of the end value?
The tolerance from the end value is +/-10%.
How long does the switching delay last between star and triangle operation?
There is a switch-over time of approximately 30ms between the adjustable star operating time and the triangle operating time.
What is the tolerance of the time relay?
The tolerance from the end value is +10%.
From: Scharco Elektronik SGCI2/SGKAE5 Electronic Time Relay Data Sheet
What is the maximum continuous current rating per contact?
Each contact can handle up to 6A AC continuously.
From: Scharco Elektronik SGCI2/SGKAE5 Electronic Time Relay Data Sheet
