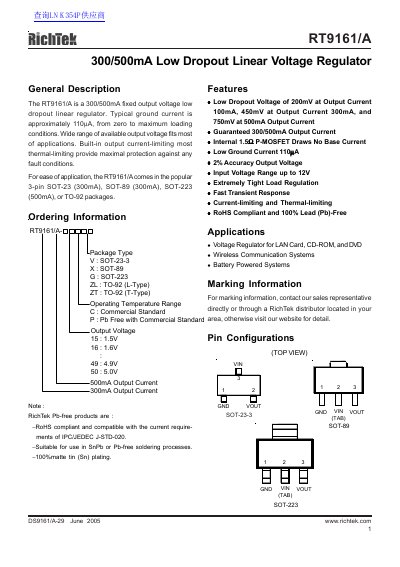

RichTek RT9161/A Low Dropout Linear Voltage Regulator Datasheet
The RT9161/A is a low dropout linear voltage regulator designed for applications such as LAN cards, CD-ROMs, DVD drives, wireless communication systems, and battery-powered devices. It features a wide range of available output voltages and includes built-in protection mechanisms like current-limiting and thermal-limiting to ensure device safety under fault conditions.
Read onlineRichTek RT9161 specifications
| Output Current | 300/500mA |
|---|---|
| Dropout Voltage (100mA) | 200mV |
| Ground Current | 110 μA |
| Input Voltage Range | up to 12V |
| Operating Junction Temperature | -40°C to 125 °C |
Source: RichTek RT9161/A Low Dropout Linear Voltage Regulator Datasheet
All RichTek RT9161 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available package types for the RT9161/A?
The device is available in SOT-23 (300mA), SOT-89 (300mA), SOT-223 (500mA), or TO-92 packages.
From: RichTek RT9161/A Low Dropout Linear Voltage Regulator Datasheet
What is the maximum input voltage?
The absolute maximum rating for input voltage is 14V.
From: RichTek RT9161/A Low Dropout Linear Voltage Regulator Datasheet
What is the maximum output current of the RT9161/A?
The device provides fixed output currents of 300 mA or 500 mA depending on the package.
What input voltage range does the RT9161/A support?
It supports an input voltage range up to 12 V.
