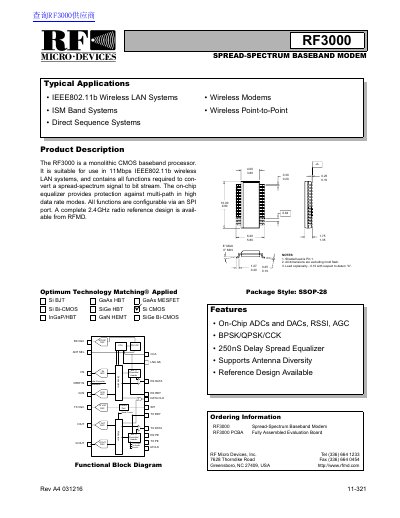

RF Micro Devices RF3000 Spread-Spectrum Baseband Modem Datasheet
The RF3000 is a monolithic CMOS baseband processor suitable for use in 11Mbps IEEE802.11b wireless LAN systems and ISM band systems. It contains all functions required to convert a spread-spectrum signal to a bit stream, including an on-chip equalizer for protection against multi-path interference.
Read onlineRF Micro Devices RF300 specifications
| Supply Voltage | 2.7 to 3.6 V |
|---|---|
| Operating Ambient Temperature | -40 to +85 °C |
| Input Bandwidth (ADC) | 11 MHz |
| Resolution (ADC/DAC) | 6 bits |
| Clock Frequency (SPI) | 6 MHz |
Source: RF Micro Devices RF3000 Spread-Spectrum Baseband Modem Datasheet
All RF Micro Devices RF300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the RF3000?
The RF3000 is a monolithic CMOS baseband processor suitable for use in 11Mbps IEEE802.11b wireless LAN systems.
From: RF Micro Devices RF3000 Spread-Spectrum Baseband Modem Datasheet
Does the RF3000 support antenna diversity?
Yes, the device supports antenna diversity.
From: RF Micro Devices RF3000 Spread-Spectrum Baseband Modem Datasheet
What is the typical contact resistance for these relays?
The maximum initial contact resistance is 0.15 ohm.
How many cycles can the relays typically handle?
The contact life rating is typically 10,000,000 cycles at low level.
