Start here

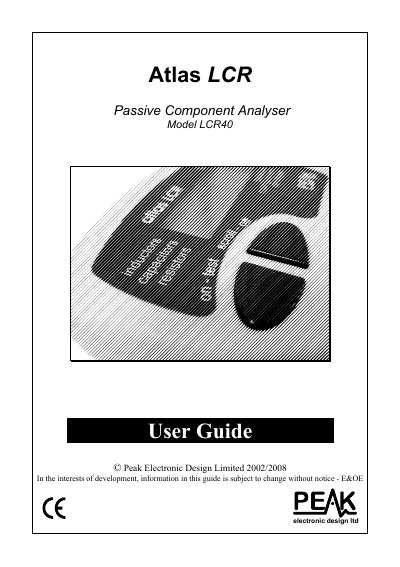

Peak Atlas LCR40 User Guide
The Atlas LCR is an advanced passive component analyser that automatically identifies component type, selects optimal test frequency, and provides results in clear engineering units. It offers automatic ranging, 1% basic accuracy, and features such as probe compensation, battery operation, and auto power‑off.
The guide covers normal use, probe compensation, testing procedures for inductors, capacitors and resistors, low‑value measurements, battery replacement, self‑tests, technical specifications, troubleshooting tips, and warranty information. Each section provides step‑by‑step instructions and safety warnings to ensure accurate measurements and safe operation.
PEAK LCR40 specifications
| Inductance resolution | 0.4 µH |
|---|---|
| Inductance accuracy | ±1% |
| Capacitance range | 0.4 pF – 10 000 µF |
| Capacitance resolution | 0.1 pF |
| Capacitance accuracy | ±1% |
| Resistance resolution | 0.3 Ω |
| Resistance accuracy | ±1% |
| Battery operating voltage | 8.5 V – 13 V |
| Operating temperature range | 10 °C – 40 °C |
Source: Peak Atlas LCR40 User Guide
All PEAK LCR40 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What test frequencies does the Atlas LCR use for inductors?
It automatically selects 200 kHz for 0‑0.6 mH, 15 kHz for 0.6‑10 mH, and 1 kHz for 10 mH‑10 H inductance ranges.
How long is the warranty for the Atlas LCR?
The warranty is valid for 12 months from the date of purchase.
How does the Atlas LCR identify component type?
It automatically identifies whether the component is an inductor, capacitor or resistor and shows its main value on the display.
From: Peak LCR40 Product Brief
What accessories are available for the Atlas LCR?
The instrument comes with detachable micro‑hooks and can use optional SMD tweezers, clutch grabbers, crocodile probes, plus accessories such as a padded carry case and spare batteries.
From: Peak LCR40 Product Brief
